[Black Friday Sale] [US Ship] Autel XP400 PRO Key and Chip Programmer Can Be Used with Autel IM508/ IM608/ IM608 Pro

Availability: In stock

Product type:

Vendor: Autel

$489.00 $549.00

Autel XP400Pro is a replacement for XP400. It adds more functionality for BM-W, Merc-edes-Be-nz, as well as EEPROM reading. With the new...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Autel XP400Pro is a replacement for XP400. It adds more functionality for BM-W, Merc-edes-Be-nz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more. Also, added functions for EWS3, W209, NEC, and more.

Highlights of Autel XP400 Pro:

1. XP400 Pro is an Advanced All-in-One Key Programmer
2. One Year Free Update Online on Autel Official Website
3. Could Be Used with Autel IM508 and Autel IM608, Also IM100 and IM600 as well

(Notice: XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth)

4. Supports Key Renewal on 11 Key Types with Additional Adapters - IMKPA, Key Programming Accessories Kit

Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro.

Why You Need XP400 Pro?

1. Expanded EEPROM functions for more component access
2. 170+ types Odometer component reading functions
3. 180+ Immobilizer ECU component types
4. 40+ Engine ECU component types
5. 2000+ MCU component types
6. 440+ EEPROM component types
7. Compatible with IM508 and IM608
8. Includes 1-Year Warranty
9. Free Software Updates for Life of Tool

ADVANCED KEY PROGRAMMING VEHICLE COVERAGE when combined with XP400PRO:

Be-nz

* One-tap Key Programming via OBD

* 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost

BM-W

* Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)

* Add Key/All Key Lost

Volks-wagen/ Au-di

* One-tap Online Programming

* Add Key/All Key Lost Via OBD for 2013 - 2020 Models

G-M

* Read IMMO Password, Add Key/ All Key Lost up to 2020

Fo-rd

* Add Key/All Key Lost (No PIN Needed) up to 2020

Maz-da

* Add Key/All Key Lost (No PIN Needed) up to 2020 FCA

* Read IMMO Password, Add Key/All Key Lost up to 2020

Ren-ault

* Add Key/All Key Lost (No PIN Needed) up to 2020

LandR-over/Jag-uar

*Add Key/All Key Lost up to 2019

Vo-lvo

* Semi-smart Key Learning via OBD up to 2018

* Smart/Blade/Fobik Key Learning via Dump

Powerful IMMO Functions:

1. Auto Detect Make/ Model/ Year/ System
2. Read PIN (All Key Lost)
3. Key Learning
4. IMMO ECU Reset/Adaption
5. IMMO ECU Refresh/Coding
6. Remote Learning
7. AU-DI Q5/ A4/A5 2015-2017 Key Learning
8. VW MQB Key Learning
9. BM-W FEM/BDC Key Learning and Adaption
10. BM-W CAS4 Key Learning and Adaption
11. Merc-edes Key Learning
12. 2015-2018 Land Ro-ver & Jag-uar write key via dump
13. Vol-vo Smart Key Learning/ knob-style smart key

Advanced Programming Functions:

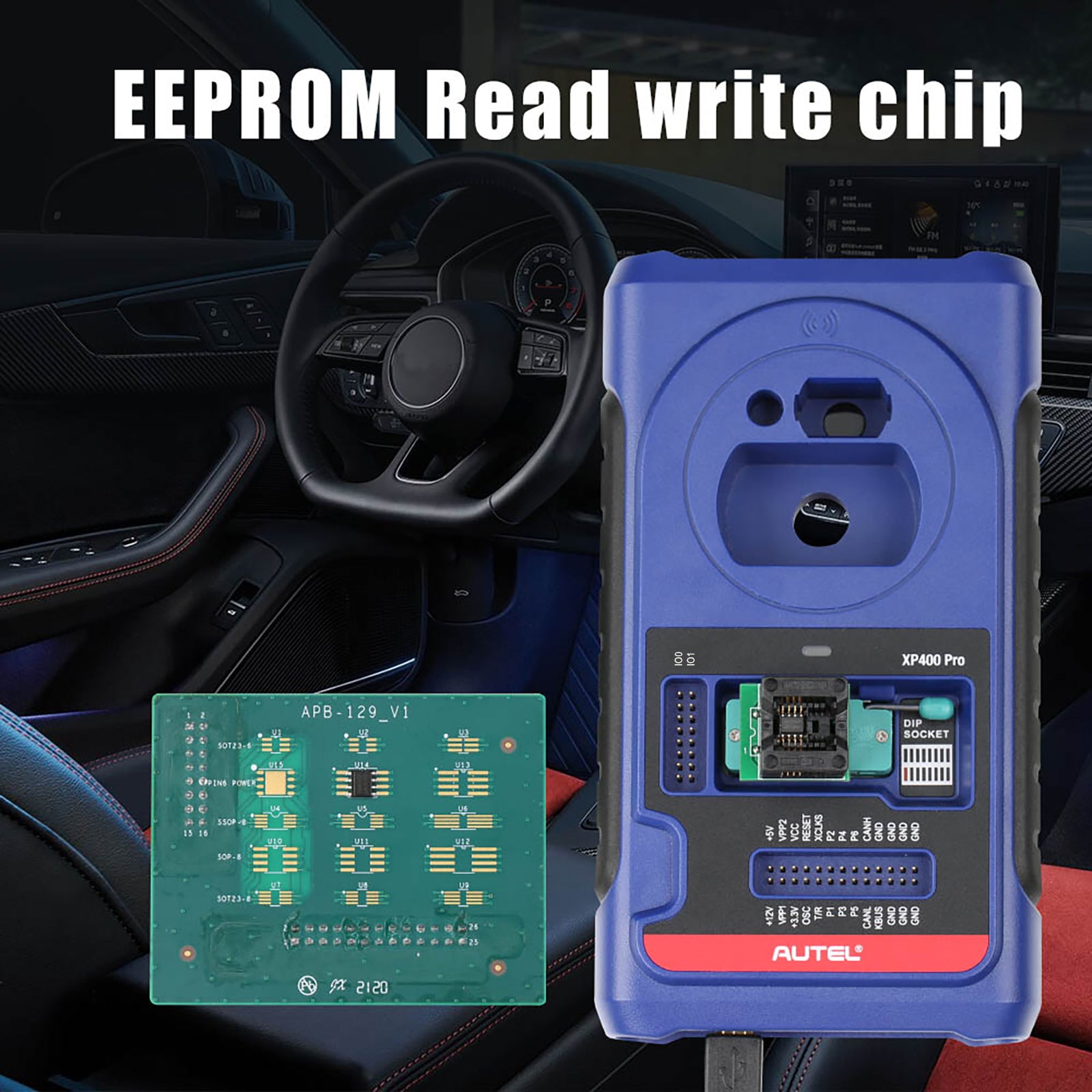

1. EEPROM Read/Write

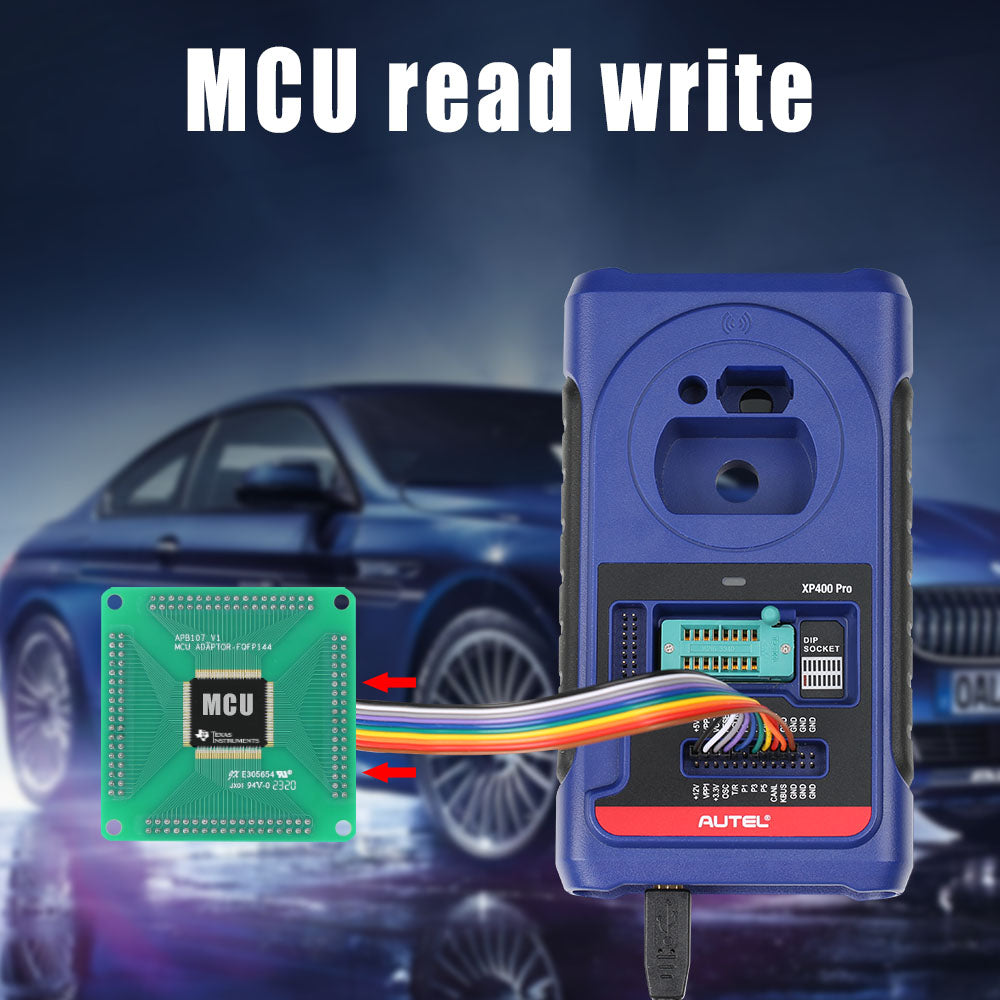

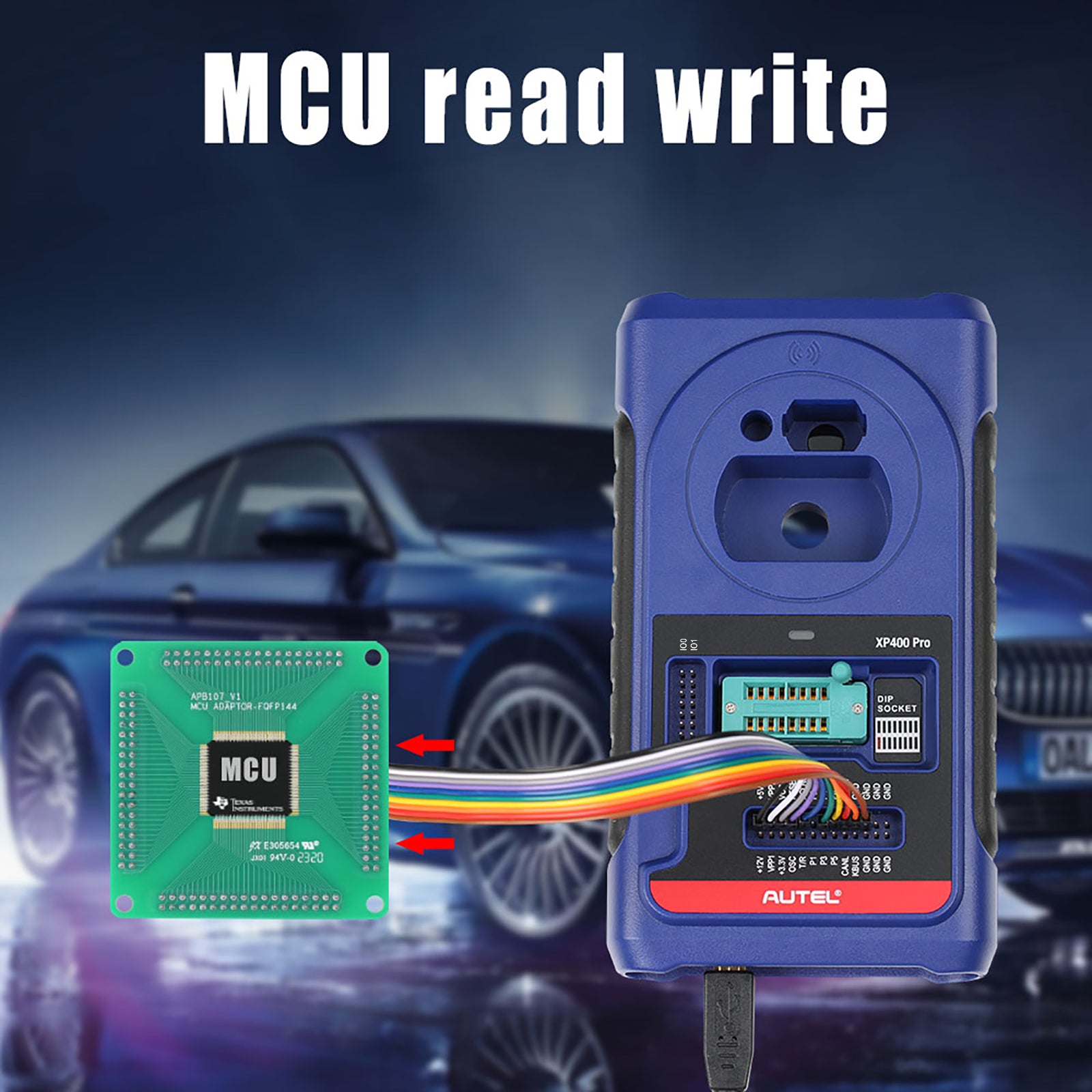

2. MCU Read/Write
3. Key Programming

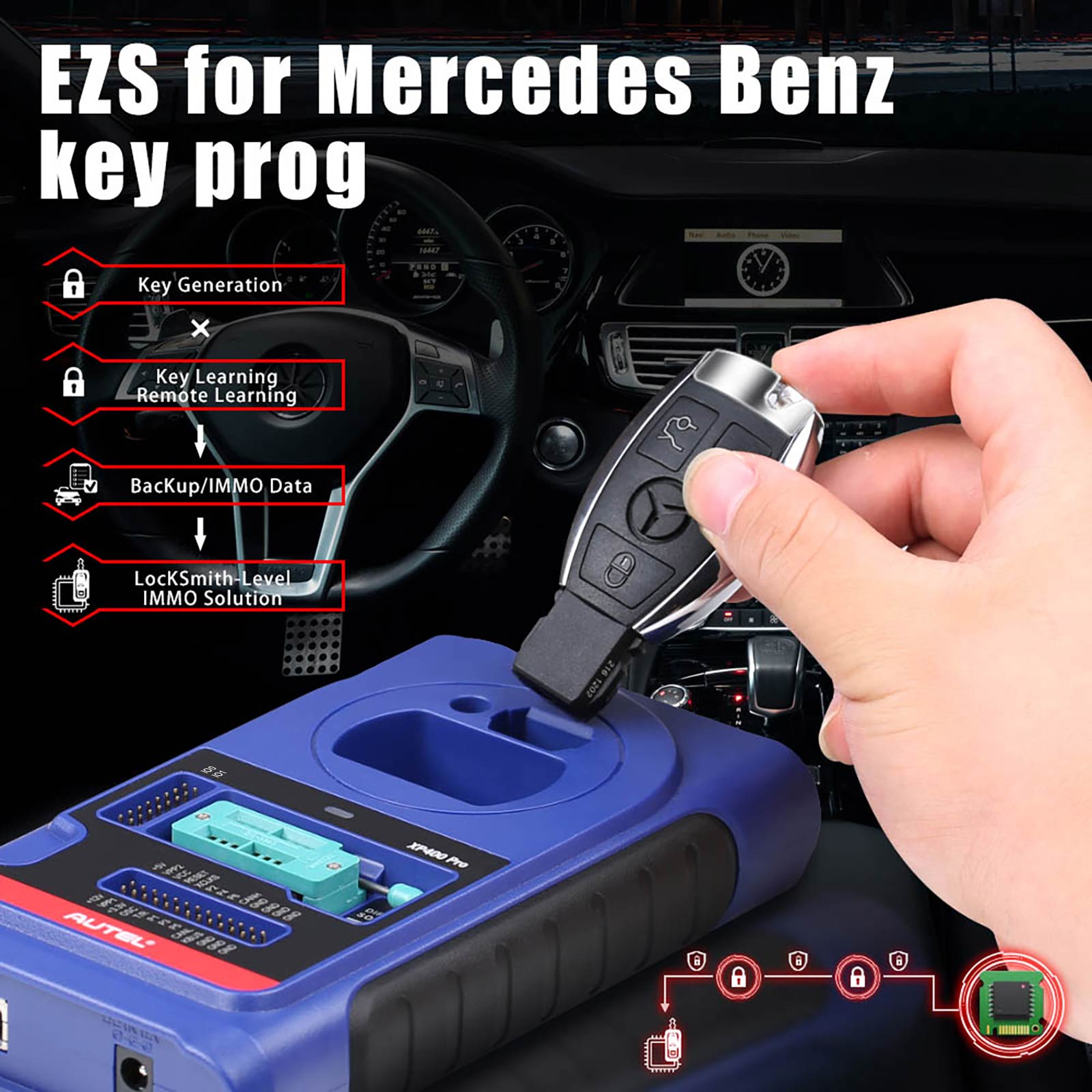

4. Merc-edes Key Read/Write
5. Remote Frequency Detect

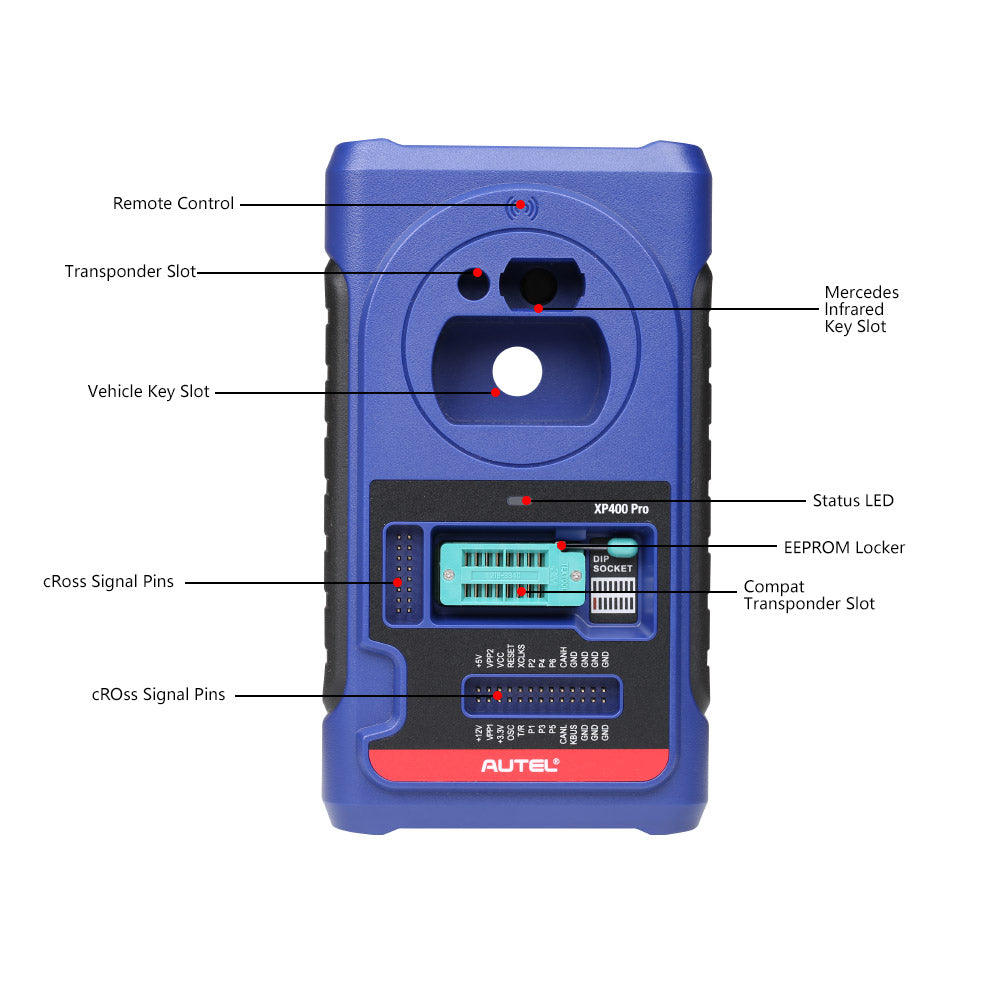

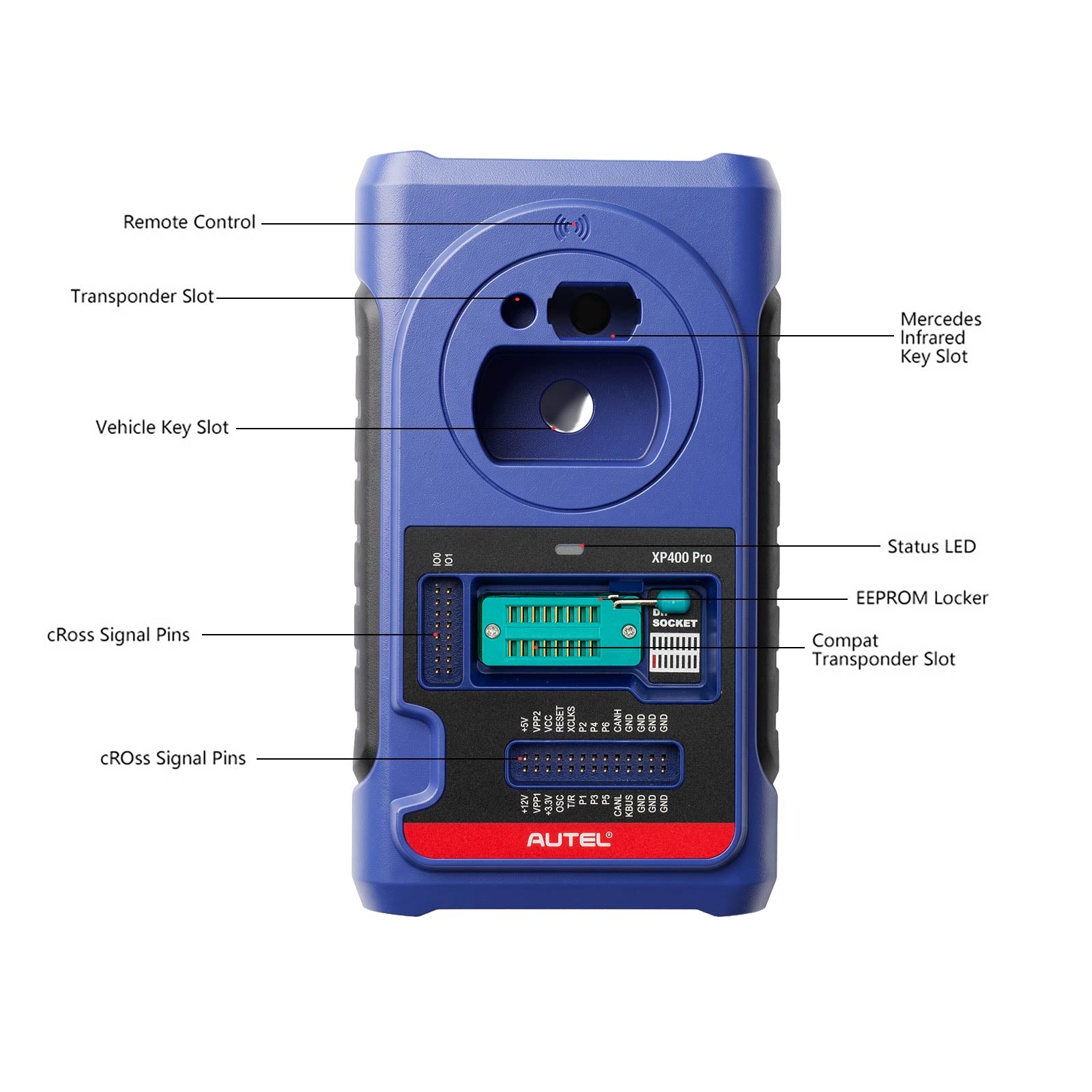

Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro (please check the below illustration).

XP400Pro Adds Support for Following Chips:

EEPROM-->>AMD-->>AM29FXXX series chip

EEPROM-->> FUJI-TSU-->> MB29FXXX series chip

EEPROM-->> ST-->> M29FXXX series chip

Engine control module-->> ST-->> M29FXXX series chip

IMMO-->> BE-NZ-->> ESL_W209_W906(Moto-rola) read/write/erase function

IMMO-->> BM-W-->>EWS3 module read/write function

REMOTE_RENEW (renew key)-->> NEC-->> V51 and V5 chip read/write/erase

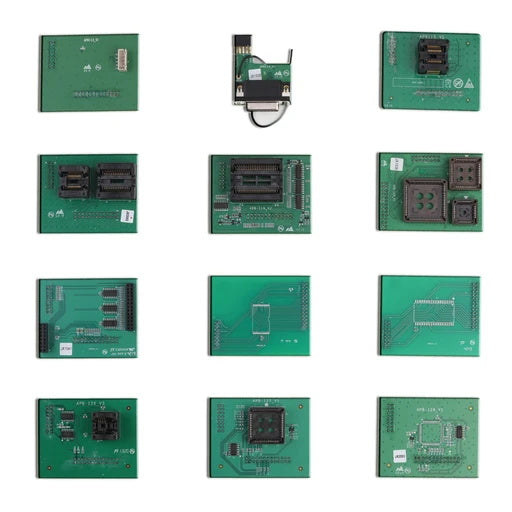

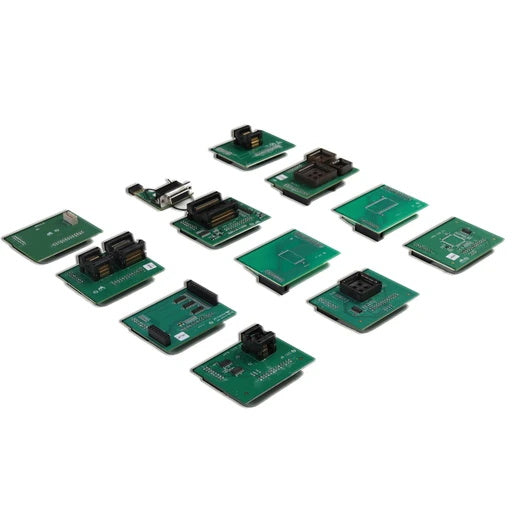

XP400 Pro Adds Support for Following IMKPA Accessories (Need to Buy IMKPA Accessories Separately)

APB113 PCF79XX adaptor board

APB114 EWS3 adaptor board

APB115 NEC adapter board

APB118 NEC ELV adaptor board

APB119 TB28FXXX adaptor board

APB120 TMS370 adaptor board

APB121 AM29FXXX adapter board

APB122 AM29FXXX adaptor board1

APB123 AM29FXXX adaptor board2

APB126 M35080/D80 adaptor board

APB127 MC68HC0(7)05BXX adaptor board

APB128 MC68HC05X32 adaptor board

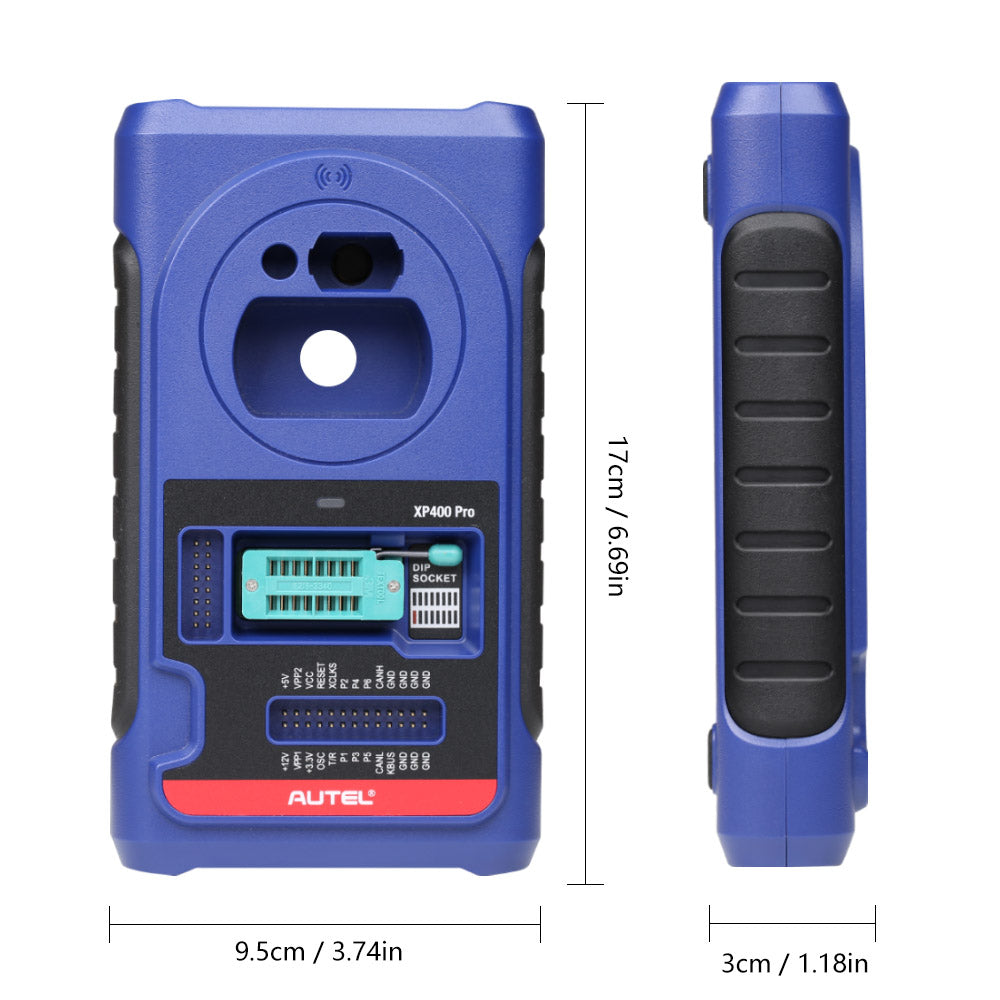

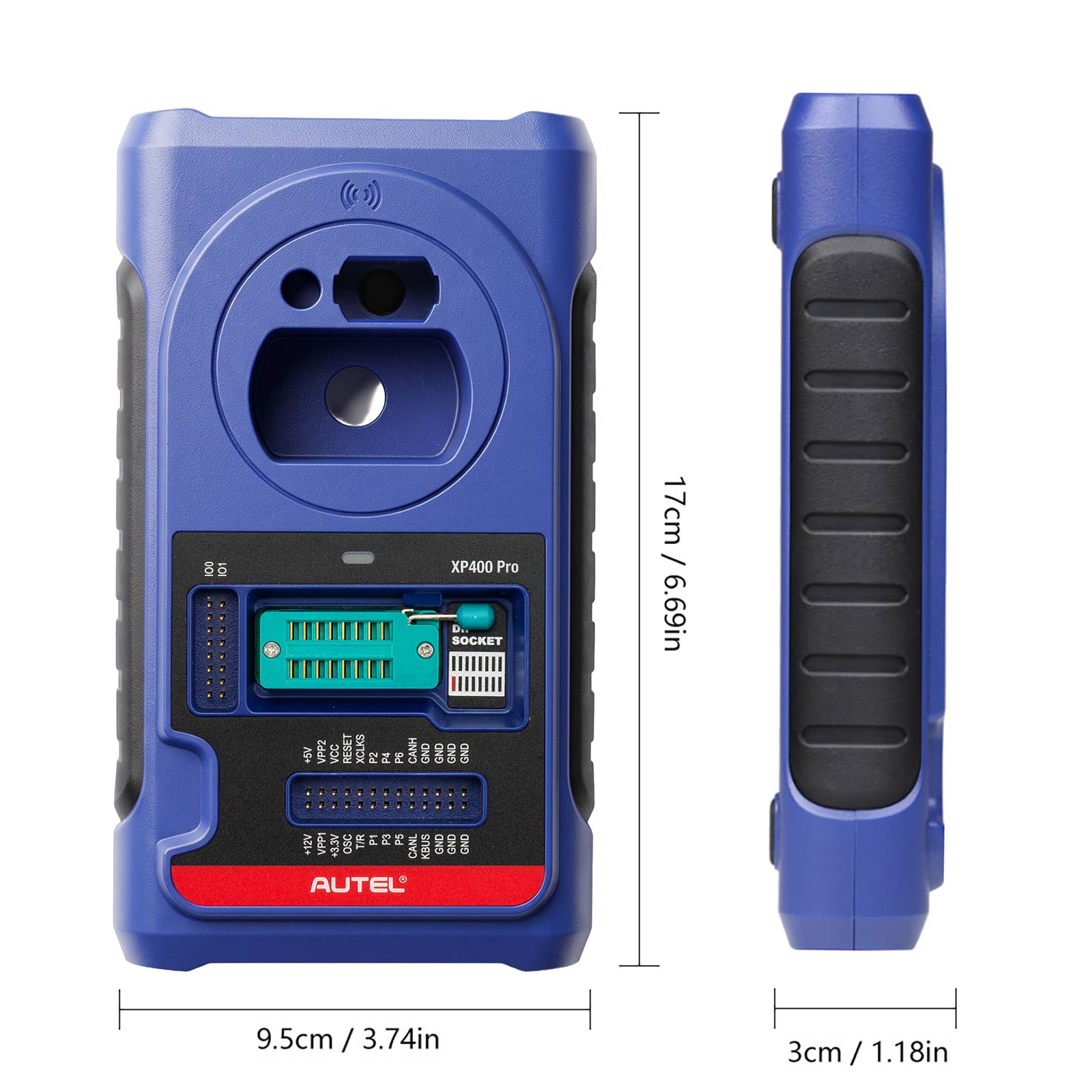

XP400 Pro Specifications:

Operating Temperature: -10â„?~ 70â„?(14â„?~ 158â„?

Storage Temperature: -20â„?~ 85â„?(-4â„?~ 185â„?

Port Type: B-USB, DB26, DC12

Input Voltage: 5 VDC, 12VDC

Operating Current: < 500 mA

Maximum Consumption: 2.5 W

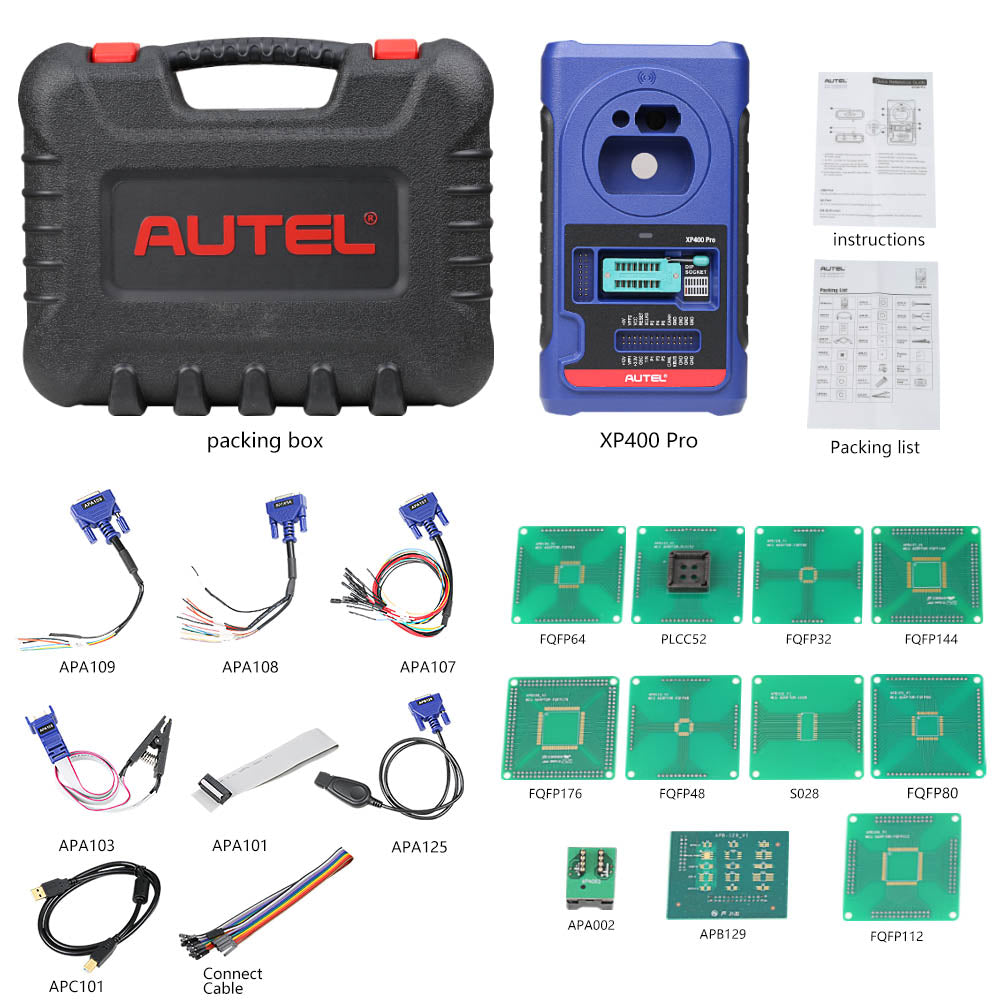

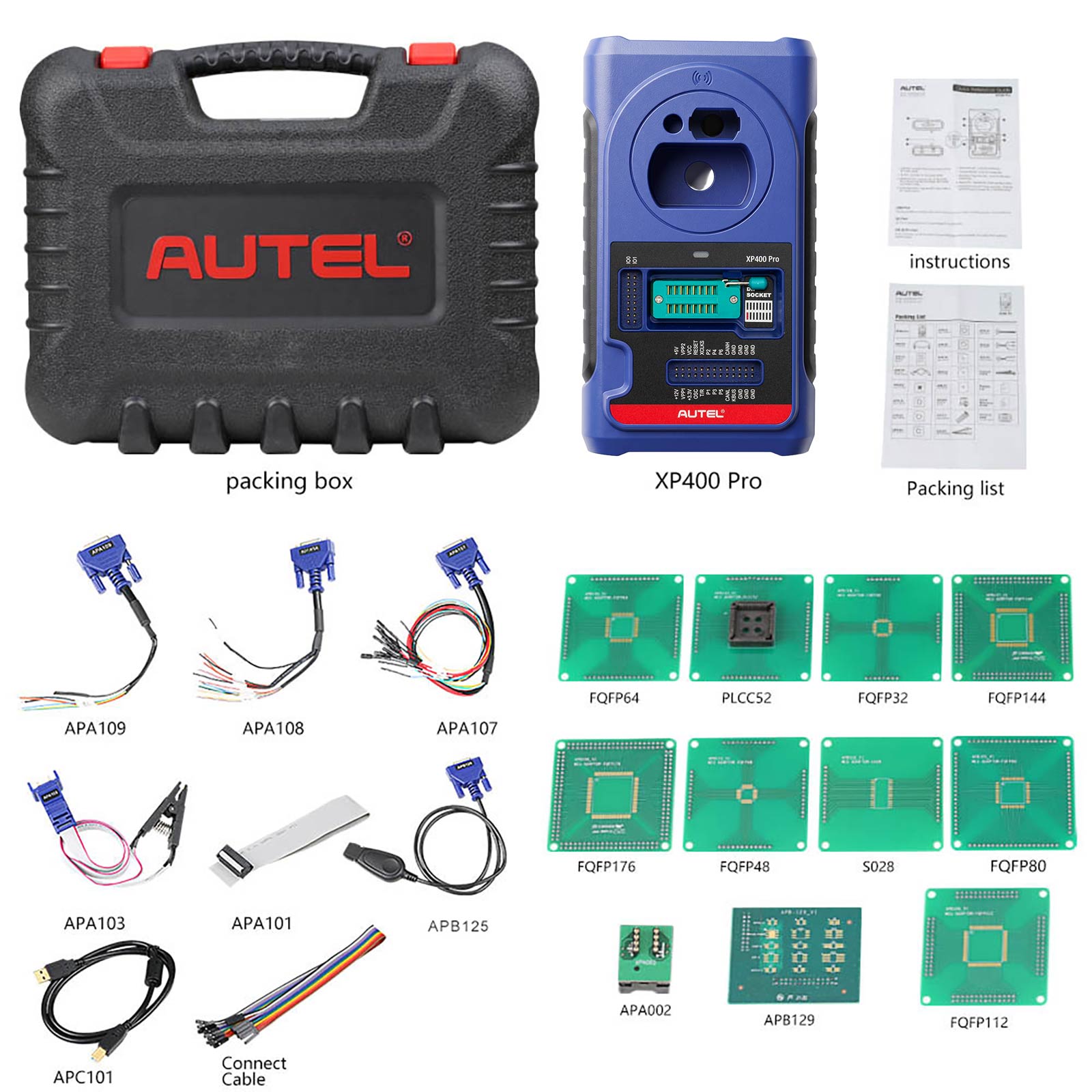

Package includes:

1pc x XP400 Pro Main Unite

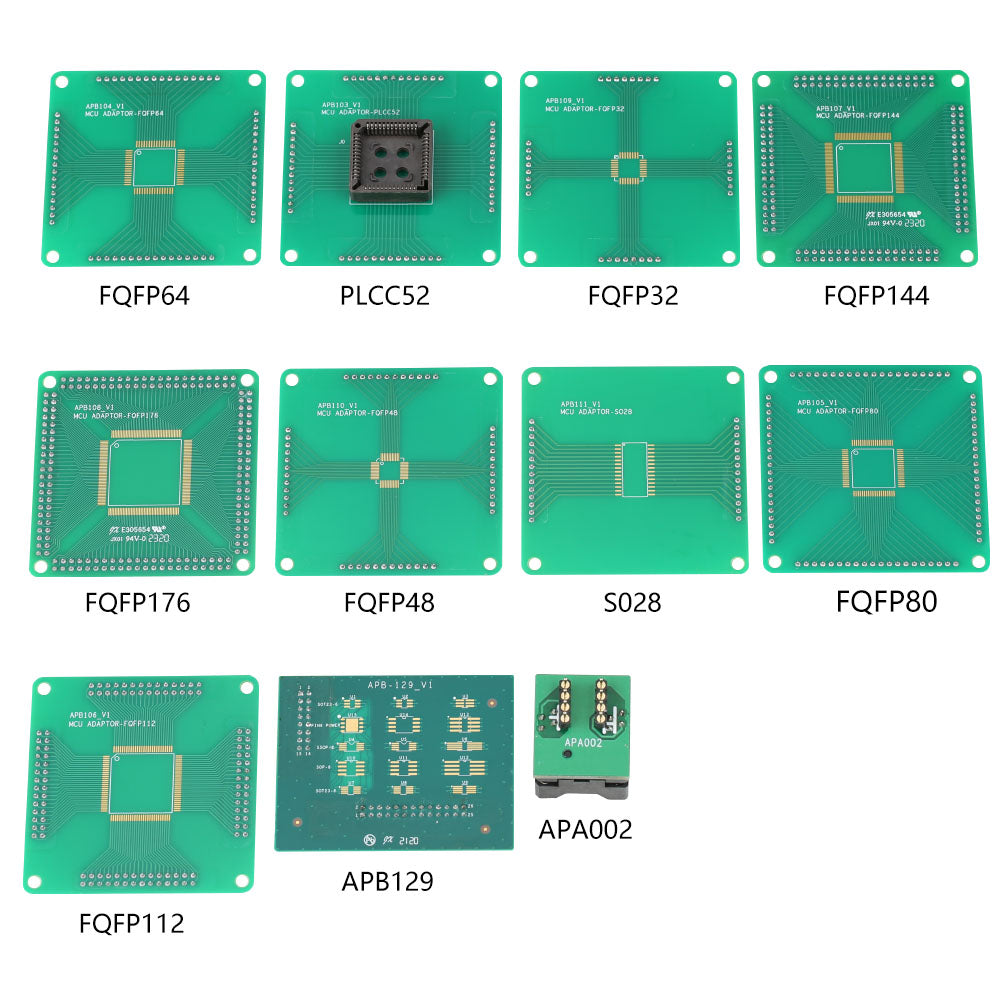

1pc x APB129 – EEPROM Adapter

1pc x APA002 – EEPROM Socket

1pc x APB125 – Mercedes Infrared Collector

1pc x APB103 – MCU_PLCC52 Adapter

1pc x APB104 – MCU_FQFP64 Adapter

1pc x APB105 – MCU_FQFP80 Adapter

1pc x APB106 – MCU_FQFP112 Adapter

1pc x APB107 – MCU_FQFP144 Adapter

1pc x APB108 – MCU_FQFP176 Adapter

1pc x APB109 – MCU_FQFP32 Adapter

1pc x APB110 – MCU_FQFP48 Adapter

1pc x APB111 – MCU_SO28 Adapter

1pc x APA101 – Spare Signal Cable

1pc x APC101 – USB Cable (Standard USB –Type B USB)

1pc x APA103 – EEPROM Clamp

1pc x APA107 – ECU Cable

1pc x APA108 – MCU Cable

1pc x APA109 – MC9S12 Cable

1pc x Dupont Line
