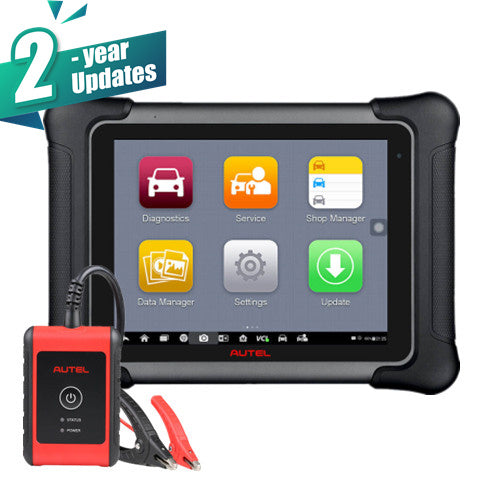

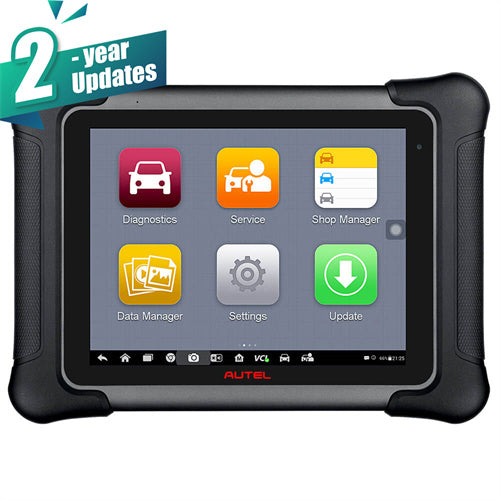

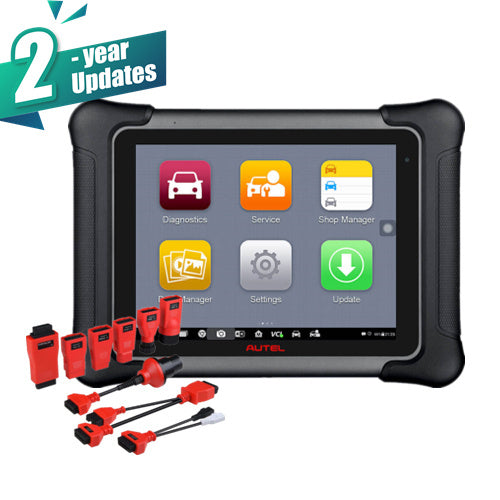

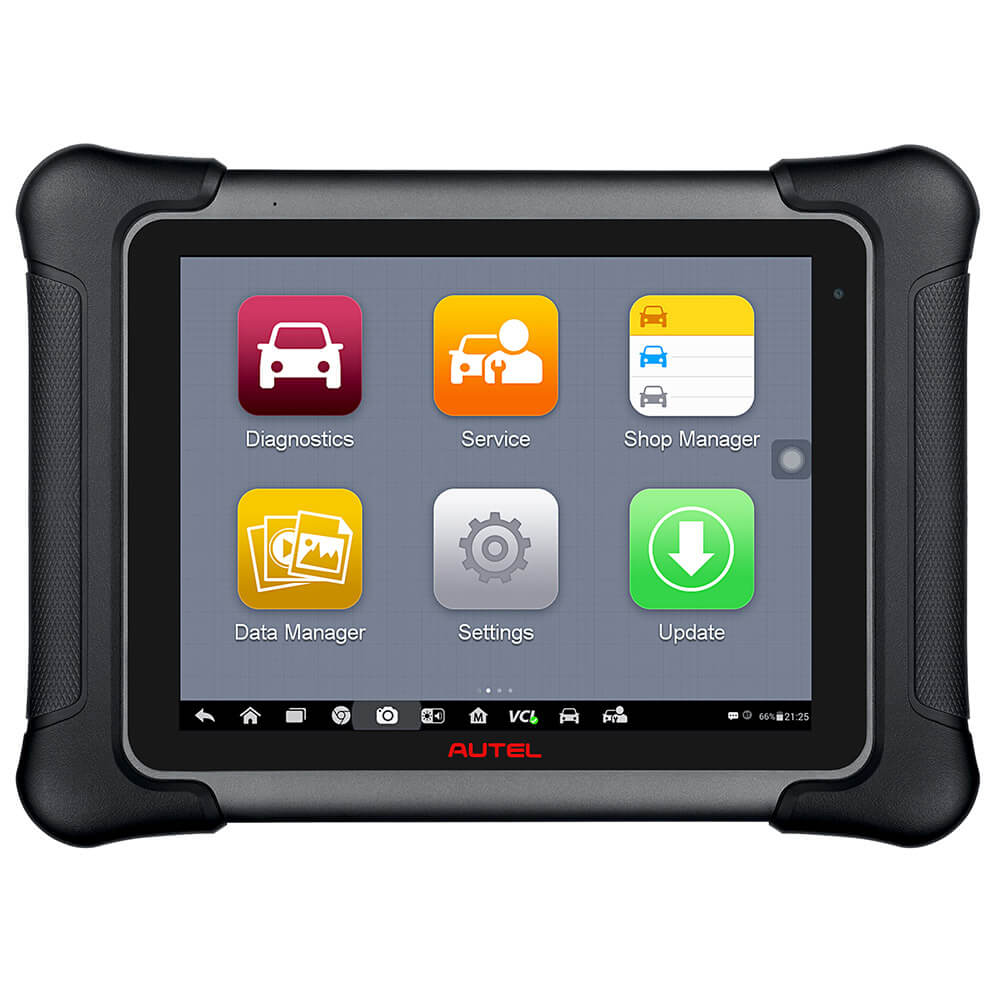

Autel MaxiSys Elite II Diagnostic Tool OBD2 Scanner

[Anni Sale] [2 Years Free Update] [US Ship] Autel MaxiSys Elite II Diagnostic Tool OBD2 Scanner with J2534 ECU Programming, Get Free BT506/ MSOBD2KIT - AutelTool.us

[Second Hand] [US Ship] Autel MaxiSys Elite II Diagnostic Tool OBD2 Scanner with J2534 ECU Programming, Get Free BT506/ MSOBD2KIT with 2 Years Free Update

Availability: In stock

Product type:

Vendor: Autel

$1,699.00 $2,039.00

Note:1. 2 Years Free Update Service (Still Valid, Ending time to be notified): When the free update expires, please click here to...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Note:

1. 2 Years Free Update Service (Still Valid, Ending time to be notified): When the free update expires, please click here to purchase an extra 1 year update service.
2. Supports Multiple Languages: English, German, Spanish, French, Polish, Portuguese, Russian, Italian, Dutch, Swedish, Japanese, Korean, Traditional Chinese, etc. (English is default language. If you want to change the English into other languages, you need to give us your Serial Number to change the language.)
3. No IP Limitation problem: Autel MaxiSys Elite II can be used in anywhere. Don't need to worry about the Tablet blocking.
4. Ship from US/ UK/ EU No Tax: can be delivered in 2-7 business days without Tax problem.
5. To confirm compatibility before purchase, please email to Sales@AutelTool.us these information: Vehicle model and year, VIN, Engine code and functions needed.

Autel MaxiSys Elite II Description:

The Autel MaxiSys Elite II, the newest addition to the MaxiSys line of highly advanced smart diagnostic tools, is based on the fast and intuitive Android operating system. Powered by Octa-core processor (2.3GHz Quad + 1.7GHz Quad) , the world’s fastest mobile processor, its visually stunning 9.7â€?Retina display offers ultra-high resolutions up to 2048x1536 and an optimized array of sophisticated and powerful applications. The MaxiSys Elite II rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite II provides extended battery life and power saving. The MaxiSys Elite II offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.

Autel MaxiSys Elite II Features:

1. The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
3. Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
4. Automatic system and software updates with real-time push message notifications via internet
5. Instant remote control tech support anytime, anywhere
6. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
7. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
8. Unique ergonomic design with rubberized outer protection and a rugged internal housing

Autel MaxiSys Elite II Functions:

Autel Maxisys Elite II OE-Level All System Diagnosis

Autel MaxiSys Elite II auto scan tool can access and scan all available vehicle electronic systems to perform complete diagnostic functions such as read and clear codes, show live data stream of multiple sensors in text or graph, perform active tests to check the operation or integrity of various systems or parts, matching and adaptations etc.

1. I/M Readiness, O2 Sensor Monitor, On-Board Monitor, Vehicle Information and Vehicle Status
2. Retrieve and display ECU information of tested control unit, including unit type, version numbers and other specifications;
3. Live data of each parameter item displayed in analog, text, waveform graph, digital, or full screen display modes;
4. Active test used to access vehicle-specific subsystem and component tests.

38 + Advanced Service Functions Can Meet You 99% Needs

Autel MaxiSys Elite II automotive diagnostic tool can perform 38+ maintenance services including Oil Reset, EPB Reset, SAS Reset, DPF Regeneration, Battery Registration, Throttle Reset, ABS Bleed, Injector Coding, IMMO keys, Window Door Roof, Headlamp and etc.

Autel Maxisys Elite II Online ECU Programming & Coding

ECU Programming:

Maxisys Elite diagnostic tool comes with J2534 ECU programming device, it is capable of replacing the existing software & firmware and programming new ECUs for specific Mercedes-Benz, BMW. This is the most advanced and valuable function for many mechanics and professional DIYers.

ECU Coding:

Refresh the Hidden Features
Customize the OE-settings
Match the Component Control Modules
Enhance Vehicle Performance
Renew ECU Coordination
NOTE: ECU Programming and ECU Coding cannot support all cars . Please send us VIN number to check compatibility.

Bi-Directional Control & Active Test

The Bi-Directional Control capability to perform active tests (functional tests) to determine the integrity of the system or parts by reading the ECU data or by monitoring the operation of the a-c-t-u-a-t-o-r-s, such as switching a solenoid, relay, or switch, between two operating states.

Wireless OE All Systems Diagnostics

Autel Elite II diagnostic scan tool can access and diagnose ALL available vehicle modules wirelessly. With an ultra long working range of about 70 m, you can perform vehicle OE-Level All Modules diagnosis and services remotely without worrying about the cable might not be long enough or the limited space and hot air in your car.

Key Fob Programming

Autel MaxiSys Elite II comes with key bob programming can retrieve vehicle IMMO information and perform Key function, but it requires a data link to the IMMO electronic control system of the test vehicle for diagnosis.

NOTE: The Key Fob Programming is designed for Asian vehicles that have low-grade anti-theft systems and NOT intended for AUDI, Benz, BMW, VW which have advanced IMMO systems.

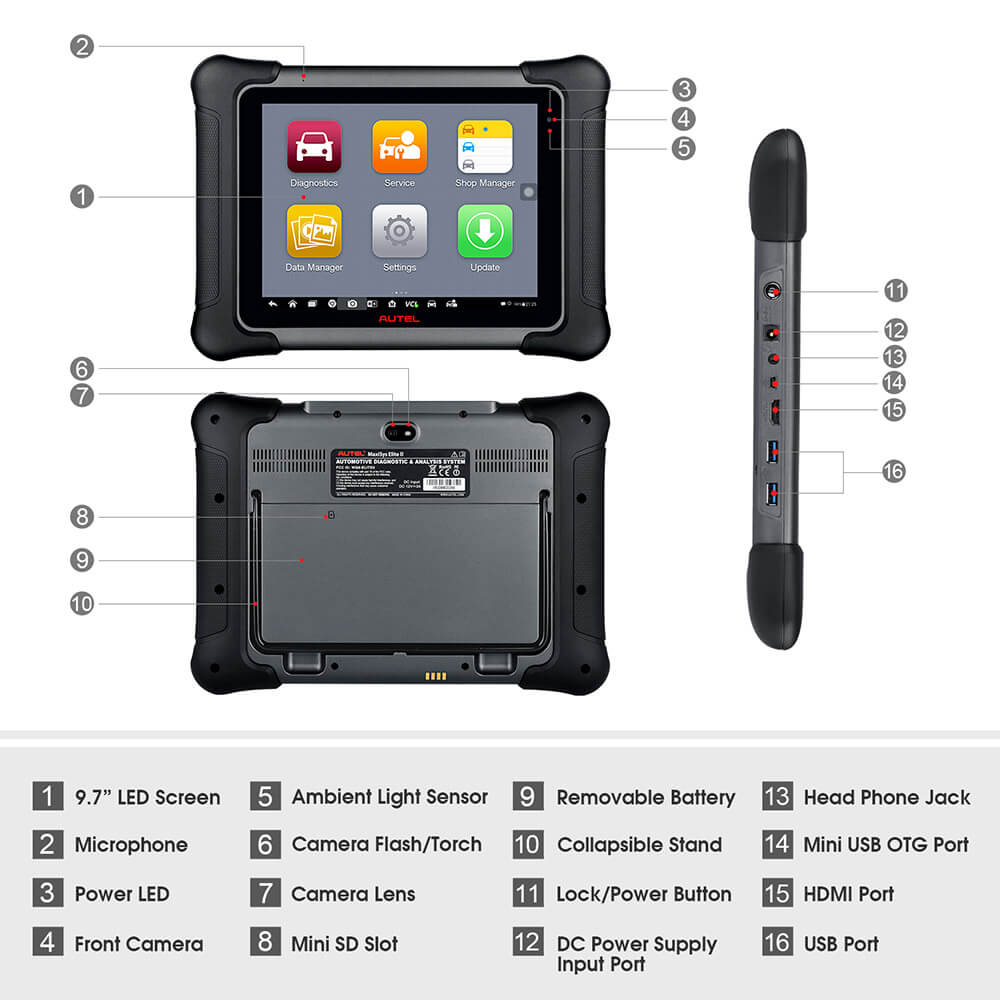

Autel MaxiSys Elite II Specification:

Operating System: Android 7.0
Processor: Samsung Exynos 8895V octa-core Processor
Memory: 4GB RAM & 128GB On-board Memory
Display: 9.7-inch TFT-LCD
Resolution: 1536 x 2048
Camera: Rear: 16 Megapixel,Front: 5.0 Megapixel
Battery: 15000mAH 3.8V lithium-polymer battery
Input Voltage: 12V/3A Adapter
Weight: 1.66kg (3.66 lb.)
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Bundle Description: MV105 digital inspection camera
UPC: Does not apply
Manufacturer Part Number: MS908SP Elite MS919 MS Ultra MS909CV MK906BT
Type: Bi-Directional Diagnostic Scanner Tablet
OBD Interface: CAN, EOBD, OBD, OBDII
Connectivity: WiFi/ Bluetooth

Autel MaxiSys Elite II Package List:

1pc x Autel MaxiSys Elite II main unit
1pc x Main cable
1pc x Clipper cable
1pc x USB cable
1pc x Ciagrette cable
1pc x MaxiFlash Elite
1pc x AC/DC adapter(12V)
1pc x Product manual
1pc x Docking station
1pc x Carrying case
