[US Ship] Autel MaxiTPMS TS608 Diagnostic Scan Tool with Complete TPMS Functions, Supports All System Special Functions and Active Test, with 8 PCS MX-Sensors

Availability: Unavailable

Product type:

Vendor: Autel

$595.00 $649.00

Autel MaxiTPMS TS608 Description: As the first flagship-grade all-in-one TPMS & diagnostic scanner in the market, Autel MaxiTPMS TS608 provides you with superior...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

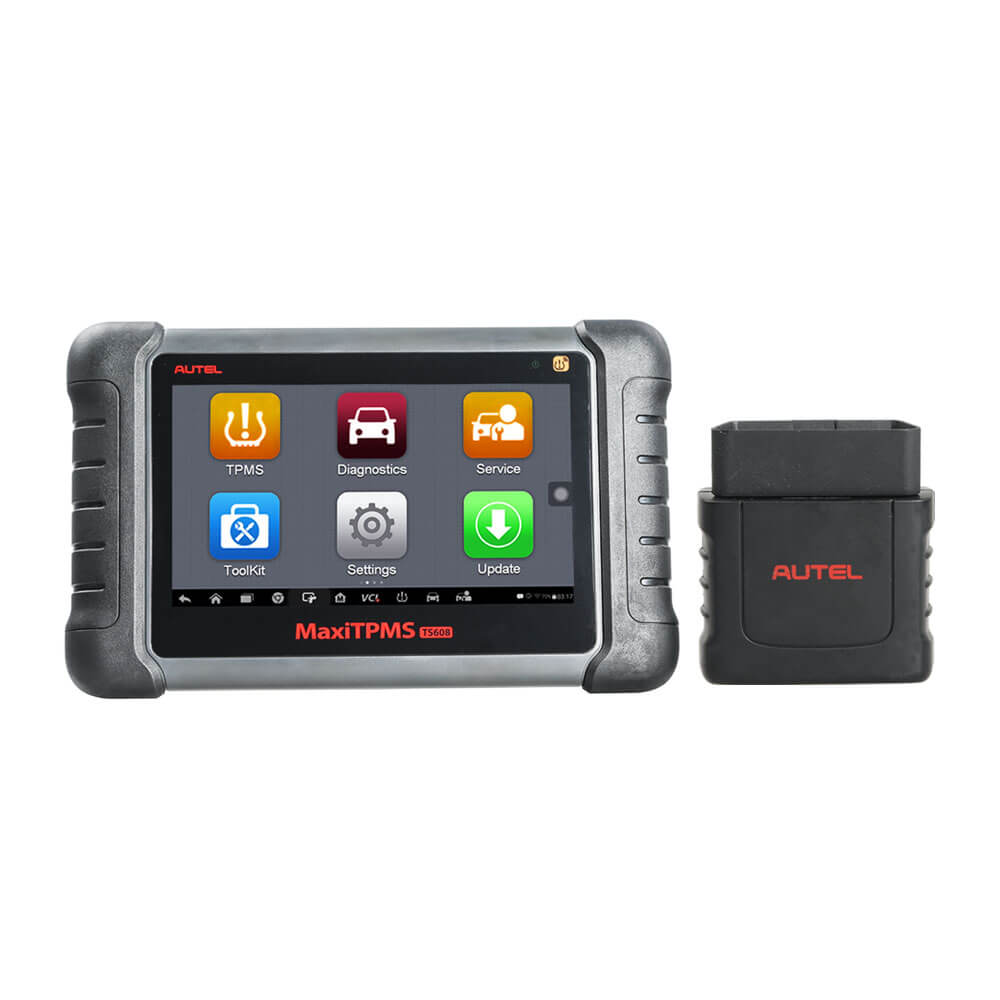

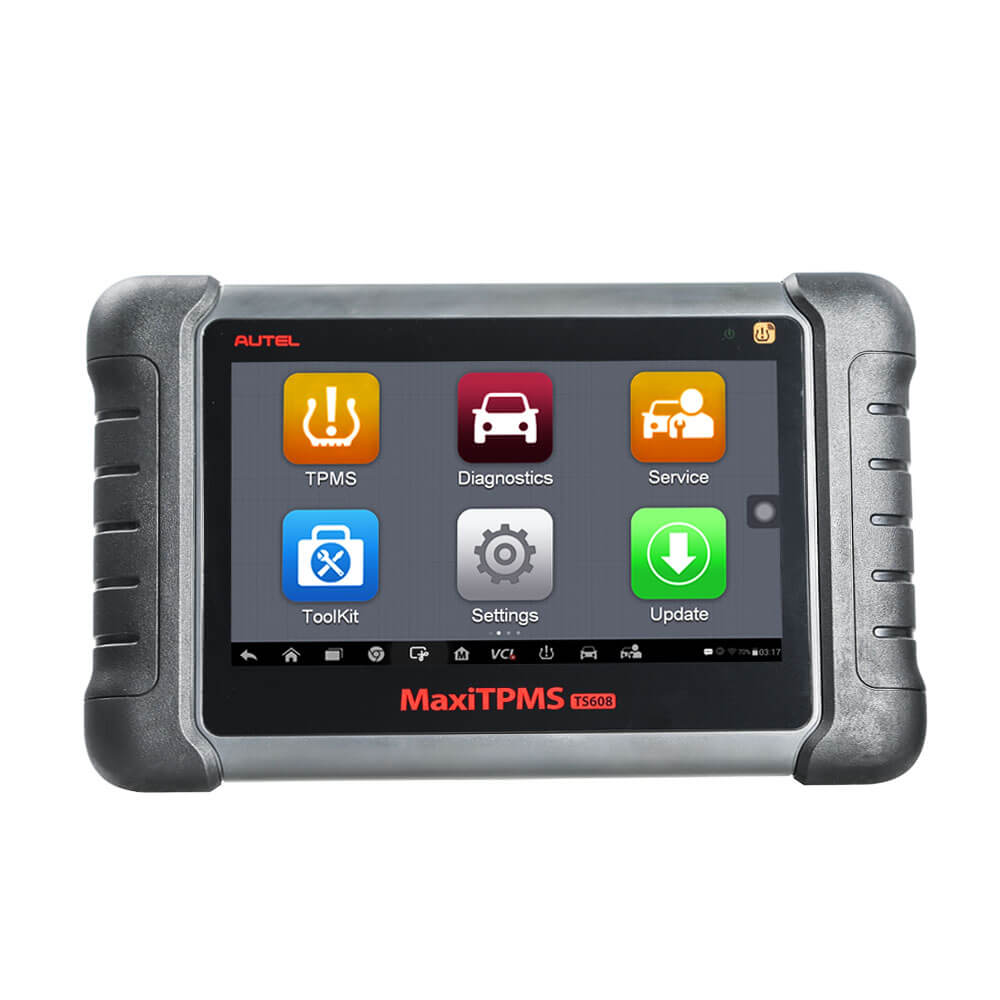

Autel MaxiTPMS TS608 Description:

As the first flagship-grade all-in-one TPMS & diagnostic scanner in the market, Autel MaxiTPMS TS608 provides you with superior experience in TPMS health check, sensor programming, TPMS relearn, all system diagnostics as well as 28+ special service functions. Featured by 2022 latest TPMS & Diagnostic technology, Autel TS608 TPMS scanner can work well on 99% of vehicles in the market, which cannot be achieved with any other diagnostic tool.

Autel MaxiTPMS TS608 Functions:

Autel MaxiTPMS TS608 scan tool provides you with complete TPMS functions including TPMS health check, sensor programming, activating all known TPMS sensors, TPMS relearn, etc. As a flagship model of Autel TPMS product line, it's definitely a must-have tool for home mechanics and tire shops.

Activate all known TPMS sensors and read sensor status;
Diagnose ECU for complete TPMS health check with DTC description;
Read DTCs from ECU and erase DTCs;
Program MX-Sensors by copying original sensor IDs or creating new IDs randomly;
On-tool relearn procedure and wide OBD relearn coverage;
Toolkit, special TPMS functions;

Latest Updated Extend Functions since June 1st, 2022:

Adds All System Special Functions and Active Test.

OE-Level All System Wireless Diagnostic

Autel TS608 diagnostic tablet scanner can access all the electronic control module (ECM) of the tested vehicle to perform comprehensive diagnostics, such as read and clear fault codes, view live data parameters, retrieve ECU information and perform active tests, etc.

Read/clear codes for all available electronic systems
Turn off warning lights
Display live data in text, graph & analog for easy data review
Supports all 10 test modes of the latest J1979 OBD II test specs;
Enhanced OBDII Mode 6

Wireless Bluetooth MaxiVCI Mini Connection

The latest compact size Wireless Bluetooth MaxiVCI Mini OBDII connector can transmit vehicle data to the tablet without a physical connection. Enhanced wireless bluetooth connectivity between the tablet and VCI device allows greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission.

Latest Auto Scan & Auto VIN Technogoly

Autel MaxiTPMS TS608 diagnostic tool features the VIN-based Auto VIN Scan function to identify vehicles and scan all diagnosable ECUs and run diagnostics on the selected system. For vehicles not supporting the Auto VIN Scan function, you can always manually enter the vehicle VIN.

Autel MaxiTPMS TS608 Provide you 28+ Mainteinance & Reset Services

Autel MaxiTPMS TS608 automotive diagnostic tool can perform 28+ service functions on a wide range of vehicle for daily maintenance service including but not limited to:
ABS Brake Bleeding: bleed air out of the ABS module;
EPB reset: Relearn parking brake pad after replacement;
SAS reset: Reset Steering Angle Sensor (SAS);
Oil reset: Reset service mileage and service intervals; Turn off the oil light;
DPF regeneration: Forced regeneration and adjusting injectors;
BMS: Support battery registration and reset;
TPMS Services, Throttle Matching, Injector Coding, Trans Adaption, Airbag Reset, WIN DR Roof, Seats, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder and so on.

Autel MaxiTPMS TS608 Specification:

Operating System: Androidâ„?4.4.2, KitKat
Processor: Cortex-A9 processor (1.6 GHz)
Memory: 1GB RAM DDR3 & 64GB ROM
Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution

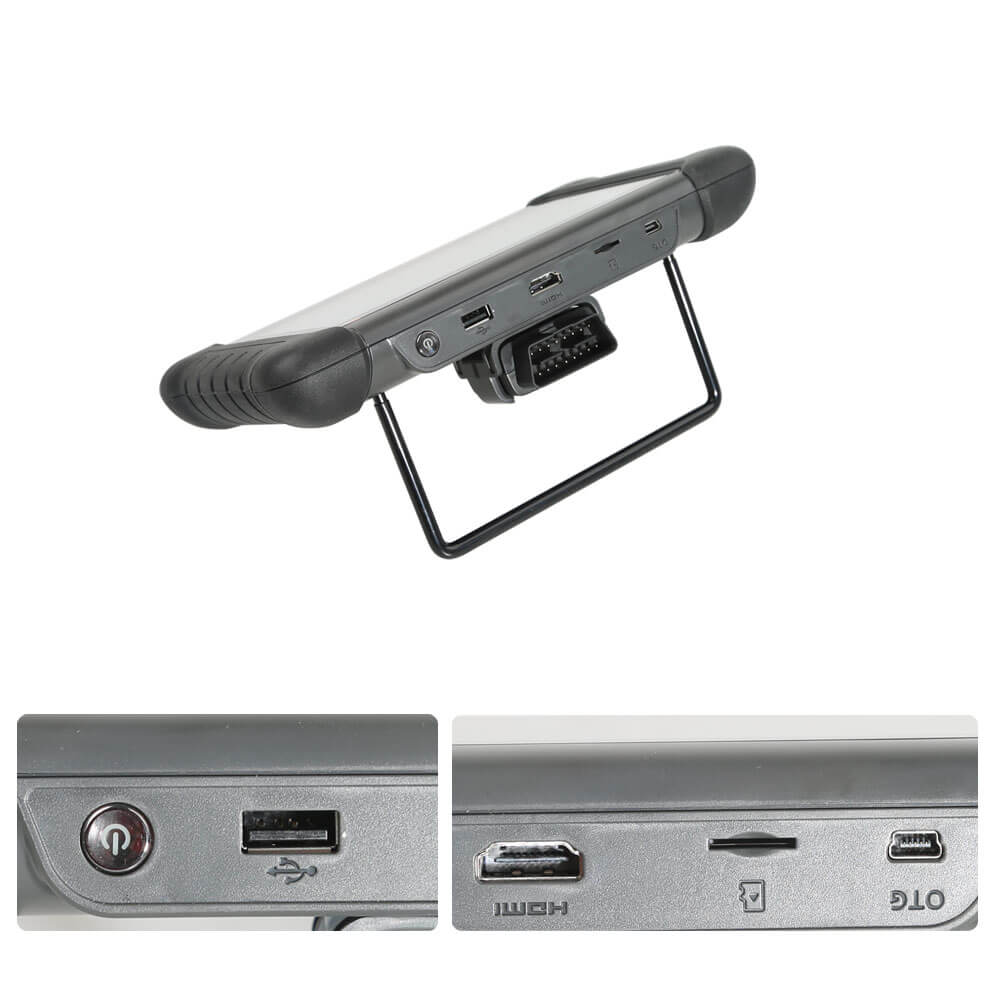

Connectivity: Mini USB 2.0; USB2.0; Wi-Fi; HDMI Type A; Micro SD card slot(supports up to 32GB)
Sensors; Light sensor for brightness auto adjust
Audio Input/Output: Input: N/A,Output: Beep
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery Life: Around 7 hours of continuous use
Battery Charging Input: 5V/1.5A
Power Consumption: 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.: -10to60°C(14to140°F)
Storage Temp.: -20to70°C(-4to158°F)
Operating Humidity: 5%-95%non-condensing
Dimensions (W x H x D): 270.8 mm (10.0â€? x 176.0 mm (6.9â€? x 36.0 mm (1.4â€?
Net Weight: 885 g (2.31 lb.)
Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol,Honda Diag-H Protocol, TP2.0, TP1.6

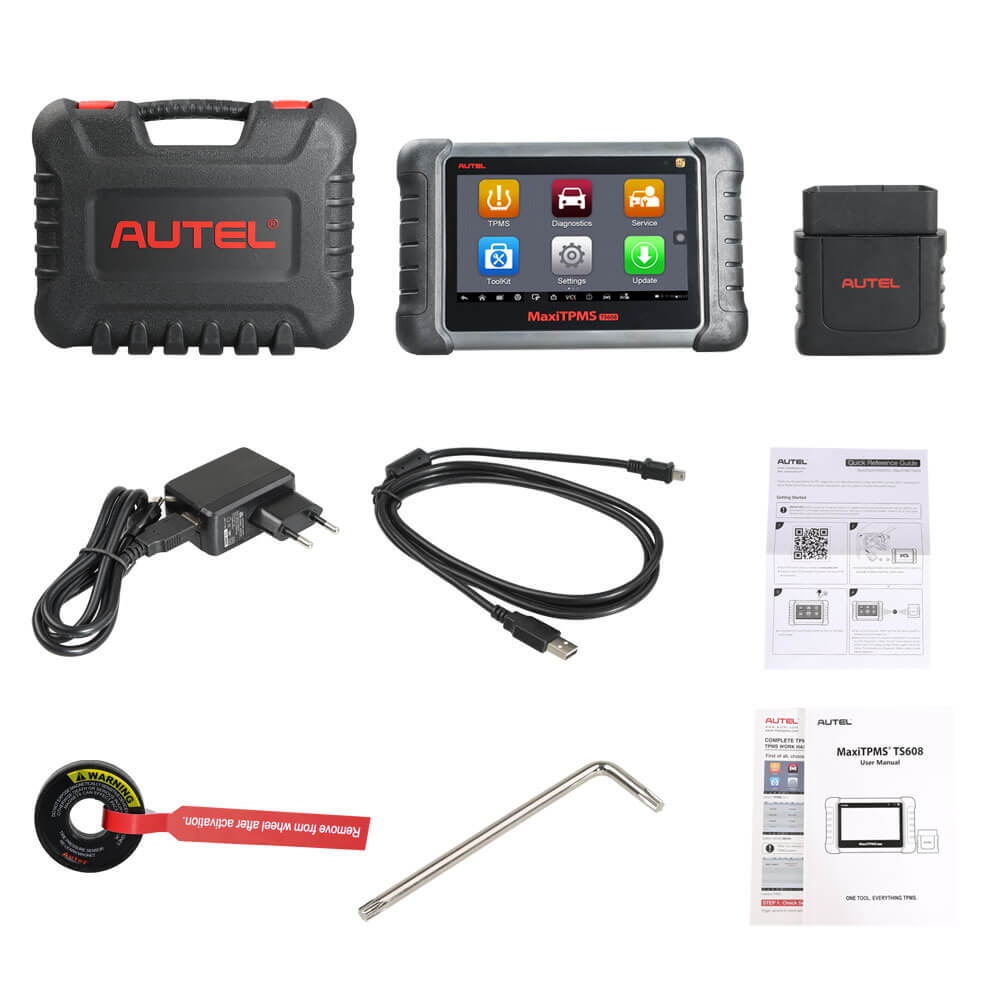

Autel MaxiTPMS TS608 Package list:

1pc x Autel TS608 Main Unit
1pc x MaxiVCI Mini
1pc x USB Cable (for test) and Magnet
1pc x USB Cable (for charging)
1pc x USB External Power Adapter
1pc x Hex Key
1pc x User Manual
1pc x Quick Reference Guide
4pcs x 433MHZ MX-Sensors (plastic)
4pcs x 315MHZ MX-Sensors (plastic)
